230SM420-MA Spherical Roller Bearing
Loj: 420x650x157 mm
* Nyhav: 246 KG
*If you want to know more 230SM420-MA bearing,email: alita@sgsabearing.com
Xa kev nug

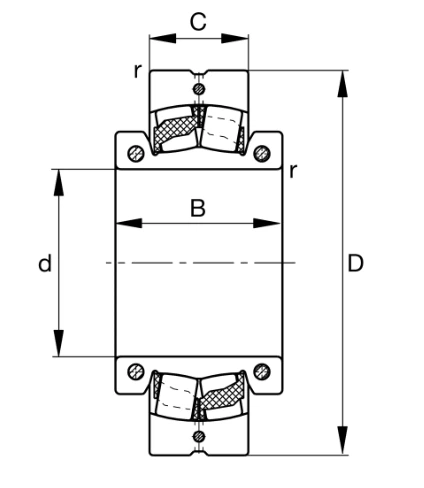

Product Details of230SM420-MA Spherical Roller Bearing
Ib tug tshwj xeeb parameter rau nws
|
|
Zaub NO. | 230SM420-MA |
| Kev faib khoom | Spherical Cov Menyuam Bearing | |
| d - Lub taub hau |
420 hli |
|
| D - Sab nraud txoj kab uas hla | 650 hli | |
| C- Dav, lub nplhaib sab nraud | 1 57mm | |
| Basic dynamic load ntsuam xyuas, radial | 3 150kn | |
| Basic static load ntsuam xyuas, radial | 5 800kn | |
| Fatigue load txwv, radial | 430kn ua | |
| Txwv ceev | 370 1/min | |
| Qhov siab tshaj plaws axial load | 60,5kn :ua | |
| Qhov kub thiab txias | -30 degree - 200 degree | |
| Mass kwv yees. | 246kg ua |
Taw qhia ntawm Split Spherical Roller Bearings
Split spherical roller bearings feem ntau yog siv qhov kev hloov ntawm unsplit kheej kheej cov menyuam bearings yuav xav tau kev ua haujlwm kim ntxiv, xws li tshem tawm cov iav thiab cov couplings, dismounting ntawm drives lossis dismantling ntawm ncej fais fab tsheb ciav hlau.
Kev siv cov spherical roller bearings shortens lub downtime ntawm machinery thiab cog thaum hloov bearings thiab cov nqi koom nrog rau kev hloov bearings yog loj heev txo. Nyob rau hauv cov qauv tshiab ib yam nkaus, cais spherical roller bearings tuaj yeem muab kev txuag nyiaj ntau hauv ntau qhov xwm txheej, vim tias cov nroj tsuag tuaj yeem ua kom yooj yim thiab kev sib dhos ua haujlwm yuav tsum tau txo.
Nyob rau hauv split spherical roller bearings, lub nplhaib puab, lub nplhaib sab nraud thiab lub tawb nrog cov menyuam txheej tau muab faib ua ib nrab. Qhov sib cais bearing rings yog tuav ua ke los ntawm screws.
Kev tsim kho sab hauv ntawm feem ntau sib cais kheej kheej cov menyuam bearings sib haum mus rau qhov tsis sib thooj kheej kheej cov menyuam bearings. Split spherical roller bearings muaj cylindrical bore. Lawv feem ntau mounted es tsis txhob unsplit kheej kheej cov menyuam bearings nrog adapter tes tsho.
Cov cheeb tsam ntawm daim ntawv thov suav nrog cov khoom siv thauj khoom, cov khoom siv ua haujlwm, cov chaw ua pa, cov tshuab dov, cov nkoj thiab cov tshuab ntawv.
